This dialog allows you to modify the selected text. Information on creating paragraph formats for the catalog can be found here.
What you will find in this article:
Basic – Indents, spacing, alignment
Font – Font design (family, style, size, etc.)
Enumeration – Bullet points and their design
Flexibility – automatic font size
Tabs – Creating and editing tabs
Exclusion – Settings for word spacing and hyphenation
Background – Background color of the paragraph
Lines – Lines before and after a paragraph
Generate – Automations at the beginning of a paragraph
Controls
Navigation

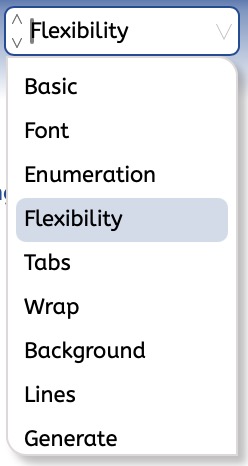

Through the navigation in the paragraph format, you can select the various sections of paragraph formatting.
The extent of the functionality provided depends on the assigned rights.
Preview
At the bottom left of the dialog is the icon for the preview. When activated, you see the left icon; when deactivated, the eye is crossed out. By default, the preview functionality is turned off.
Values are only assigned when you
- press the "Assign" button or
- switch to another section within the properties.
Back to the original values
This is a "Mini-Undo" – with this button, you return to the values that were last assigned to the paragraph. This is helpful when you have tried various things and want to revert to the original value without having to close the dialog.
Close
The properties dialog will be closed. Changes that have not yet been assigned will be lost. No confirmation will be requested.
Assign
The changes made will be assigned.

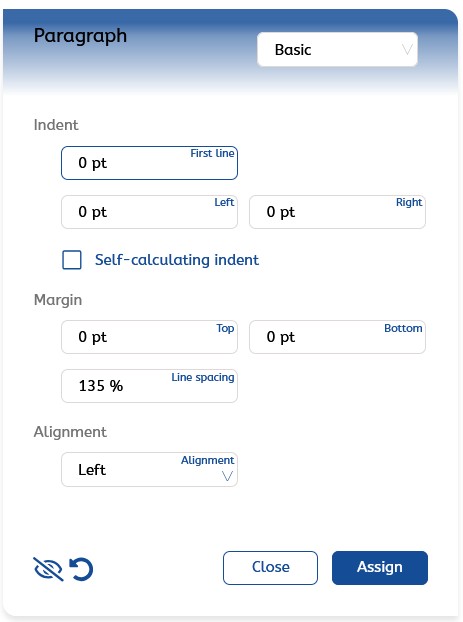

Basic
This section allows you to assign spacing and indents to the paragraph.
Indent
First line left:
The indent applies only to the first line on the left. The indent defined here is additive to the left indent. For a hanging indent, it is necessary to specify a negative indent here. A specified negative value for "First line left" will never cause the text to be positioned outside the text frame.
Left:
The indent for the left margin from the second line onwards. Negative values are not allowed. A "hanging" indent can be created by entering a positive value for the left indent in the paragraph format and a corresponding negative value for the first line indent.
Right:
The indent for the right margin of the display. Negative values are not allowed. The right indent affects every line of the paragraph, including the first line of the paragraph.
Self-calculating indent:
The "self-calculating indent" option can be activated via the paragraph format dialog. The text within a paragraph is right-aligned. The longest line within the paragraph determines the left indent. The line centering is maintained, meaning all other lines are aligned according to their centering relative to the longest line.
Notes:
- The self-calculating indent is not evaluated in text frames with variable width,
- For the function to work correctly, a line break (Soft-Return) must be created at the end of the line (usually via the keyboard combination Shift + Return),
- If it is predictable that the user will not create a Soft-Return, it can be set in the text frame properties that a paragraph end (Return) is automatically interpreted as a line break.
Spacing
The spacings in Stylo do not work additively. Between two paragraphs, the value with the larger amount is always used. Negative values are allowed.
Above:
Spacing above a paragraph. The spacing above a paragraph is not effective at the beginning of a column.
Below:
Spacing below a paragraph.
Line:
Spacing between lines within a paragraph. The specification of the spacing can be either relative or with an absolute value.

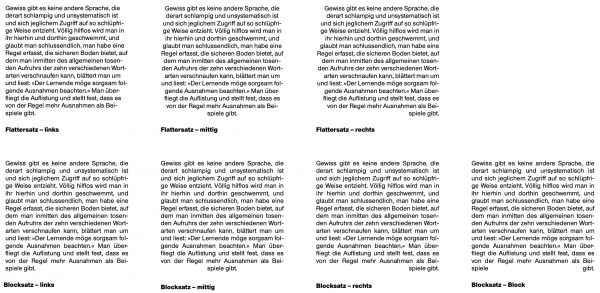

Paragraph Alignment
Here you can set the paragraph alignment. Possible variants are:

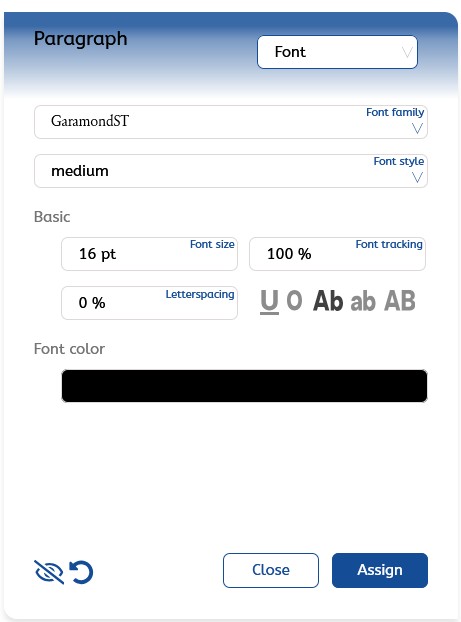

Font
Font family
In the popup menu, you can select the font family. A preview of the font will be displayed.
You can also filter for font families through this field to potentially arrive at a result faster. You can end the filter icon with the backspace symbol on the left side in the field.
Font style
From the style menu, you can select one of the following styles of a font family:
- Regular
- Bold
- Bold Italic
- Italic
If a font provides more styles, they are made available as a font family (for example, Helvetica Condensed).
Font width
Specifies the width of the font as a percentage of the em or absolutely. The font width can only be reduced. The smallest possible value is 60%.
Letter spacing
Here you can specify a percentage value to increase or decrease the spacing between individual letters. The values are percentage indications relative to the font size.
Other font attributes
With the two left buttons, you can toggle the underlining of text or outline on and off. The right buttons are used to set the case of the text in the paragraph format. Either what was entered is output ("Ab" – standard) or it can be switched to all lowercase or uppercase.
Color
The color dialog opens, from which a color for the text can be selected. For an assignment, both the color dialog and the paragraph format dialog must be confirmed with "Done".

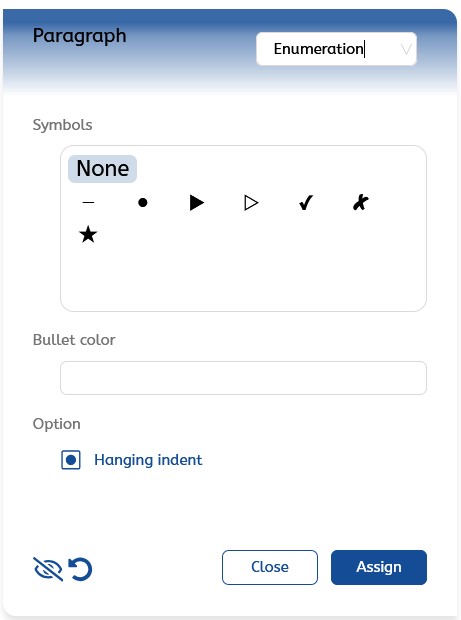

Enumeration
Symbols
You can select from the list which bullet point should be used for the paragraph. In the configuration of Stylo, it is determined which symbols are allowed.
Color of the bullet point
Click on the color area to open the color dialog and choose the desired color for the bullet point. Both the color dialog and the paragraph dialog must confirm the color.
Hanging indent
By default, a hanging indent is used. If you do not want this, it can be turned off here.
The indent value is defined in the configuration of Stylo in the definition of the bullet points.

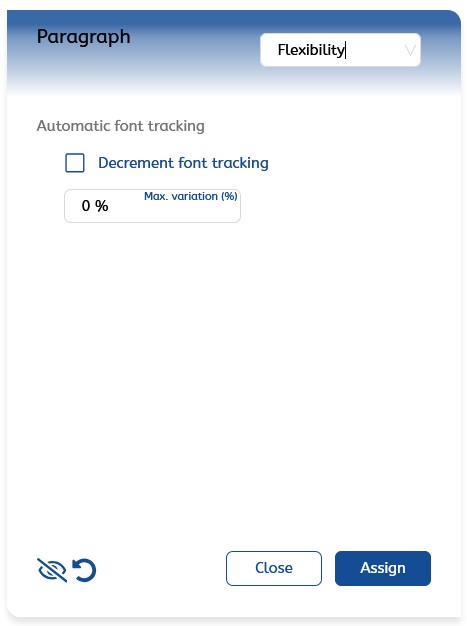

Flexibility

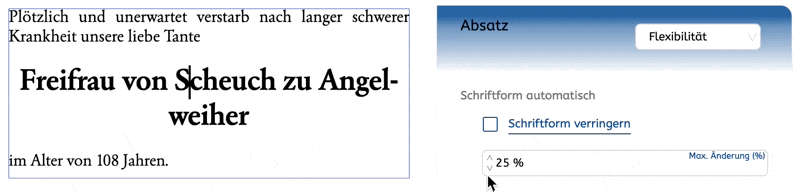

Reduce font width
For single-line paragraphs, this function allows the font width to be reduced so that the text may fit into one line. The maximum value by which the font width may be changed by the program is specified via "Max. Change %". If the maximum value for font width reduction is exceeded, the text will be output without a font width change.

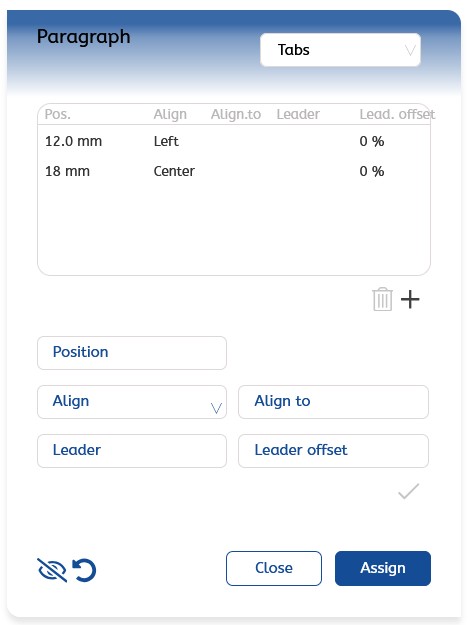

Tabs
The list displays the tabs defined in the paragraph format with the stored parameters. To edit, select a tab from the list and then change the individual parameters in the lower area. Editing can also be done via the ruler.
When a tab is selected in the list, its settings appear on the left side. To add a tab, select New in the list, specify the settings in the tab settings area, and click Apply. To change a tab, activate it in the list, change the settings, and click "Apply". If Delete is clicked and a tab is selected in the list, it will be removed from the list.
| Add a new tab to the list. You cannot enter and assign values until a new tab has been created. A new tab can also be created by clicking in the ruler. You can change the type of the tab by clicking on the tab in the ruler. |
|
| If values have been entered or changed, they will be assigned to the tab list via this button. | |
| This button can be used to delete an existing tab from the list. Deletion can also occur by selecting a tab in the ruler and dragging it out of the ruler. |
Settings for the tab
Position
Distance of the tab from the left column edge
Alignment
Alignment of the text at the tab:
left-aligned, centered, right-aligned, decimal, or line splitting
Align to
Character to be used for decimal alignment. For example, a comma, period (.) or any other character can be entered to align the text.
Fill character/Spacing fill character
Here, a fill character for a dotting can be specified. A minimum distance between text and fill character or fill character and text can be defined. The specification is in percent of the standard paragraph font size. The grid of the fill characters starts at the left edge of the text column. This ensures that the fill characters are aligned line by line. The font attributes are determined by the standard paragraph font. For the tab of type line splitting, there is special handling for line overflow. In the first part, the string is output a maximum of three times. In the second part, the fill characters extend from the left edge of the text column to the overflowed text.
Align tabs
This function allows set tabs to be automatically aligned in blocks. The block formation occurs within a paragraph, meaning the lines must be separated by a line break.
You have two options for working with the function.
Option 1
You do not work with fixed tab positions at all. The tab characters are set in the text, and when you set the "Align tabs" option, the position is calculated. For alignment in the blocks, the paragraph alignment always applies.
Option 2
You can continue to work with fixed tab positions. You can specify which alignment you want to use at the tab positions. For the first block – which is not formed by a tab – the paragraph alignment applies. You should choose this variant if the first block should be left-aligned (which is specified by the alignment of the paragraph), the second centered, and the third right-aligned.
If the text does not fit in the line, a new line is created, and the function of automatic alignment may not work as desired. In this case, it only helps to shorten the texts or reduce the font size.
No right indent
Tabs, especially line splitting, by default consider the right indent defined at a paragraph. If you do not want this, you can activate the option "No right indent" at the paragraph.
Image above: The option "No right indent" is not set.
Image below: The option has been set.
Text tabs – Indent up to here
A text tab creates an automatic indent for the lines following the call. This indent changes when the text before the call of "Indent up to here"/Text tab changes.
Although the name is used here, the text tab is not a real tab and does not interfere with them. A mixture of the two types is not advisable – calling a tab after a text tab can lead to surprising results, as the text tab changes the exclusion in the line.
The function is called either via the context menu or via the keyboard command Ctrl + #.
By default, the indent only applies to the current paragraph.
Indent up to here
This defines up to which position the indent should be active. Usually, this is "up to paragraph end" (this is also the name of the selection). If a line break is captured within the text, the indent remains.
If you want the left margin to start again after a line break (depending on indents and margins), then change the setting to "up to line break".
Align – Over multiple paragraphs/group
As mentioned before, each paragraph is calculated individually. If you do not want this, you can activate the checkbox "Over multiple paragraphs". In this case, the indents are considered beyond the paragraph.
Basically, the paragraphs are grouped together. If it was set under "Group" in the selection box "Paragraph without text tab" that "ends the group" is active, then the first paragraph in which no text tab is called is considered the end of the previous indent. If a paragraph is called again in another paragraph afterwards, a new value is determined.
If "is skipped" was selected in the setting, then the indent value remains.
This is usually broken by paragraphs that have a different design. In this case, the alignment will definitely be interrupted.
No rule without exception: If you work with paragraph format names in your formats (i.e., pulling the formats from a catalog), then paragraphs with the same name can also be kept together with their indents.

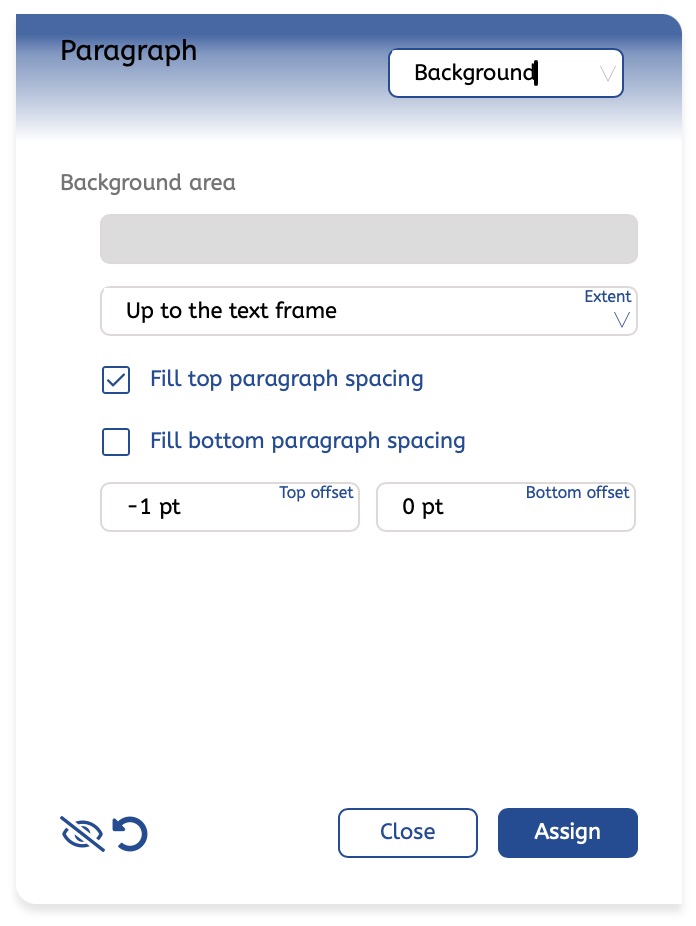

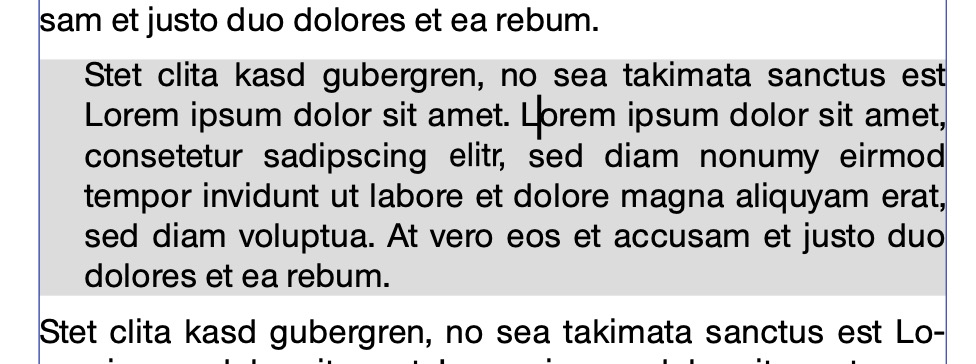

Background
Through this dialog, you can determine whether the paragraph has a colored background.
If consecutive paragraphs are given the same values for the background, the background will be merged. This also applies if spacing has been defined in the paragraph format under "Basic".
Background color
In this section, you specify which color should be assigned to the paragraph background. Click on the color area, and the color selection dialog will open. You can choose solid and transparent single-color backgrounds as well as gradients.

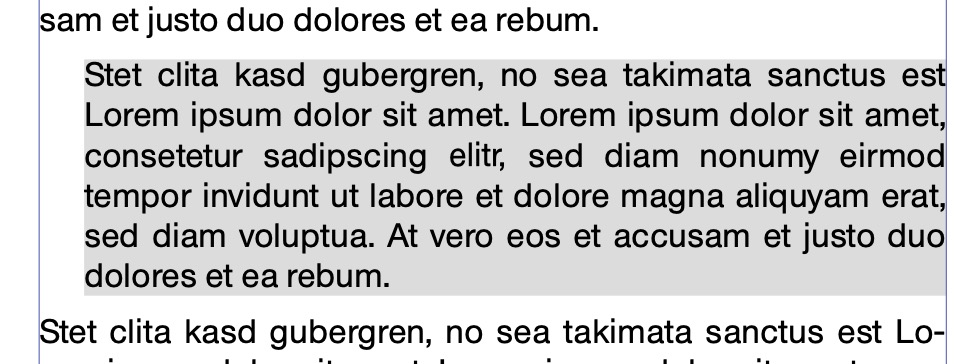

Extension
Indicates how far the background extends. You have two options, either the background applies up to the start of the paragraph indent (if one has been defined) [Image left] or up to the start of the text frame (or an inner margin defined in the text frame) [Image right].

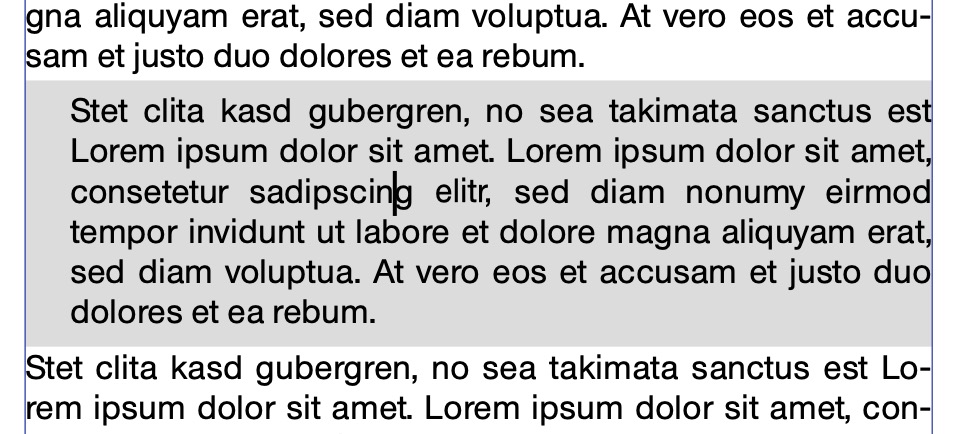

Fill paragraph spacing above/fill paragraph spacing below
If you have defined a spacing above, you can use these checkboxes to determine whether this space should be filled by your paragraph background. The left image shows how it looks without the set options, while the right shows it with the activated checkboxes for above and below.

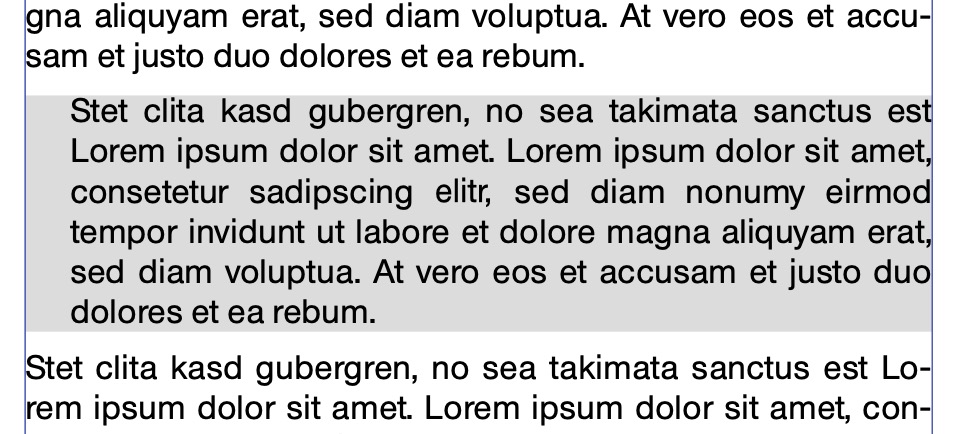

Offset
The distance of the fill to the text above and below can also be determined via the parameters offset above and offset below, in addition to filling the paragraph spacing above/below. This offset works additively to the fill specification above. You can also specify negative values.

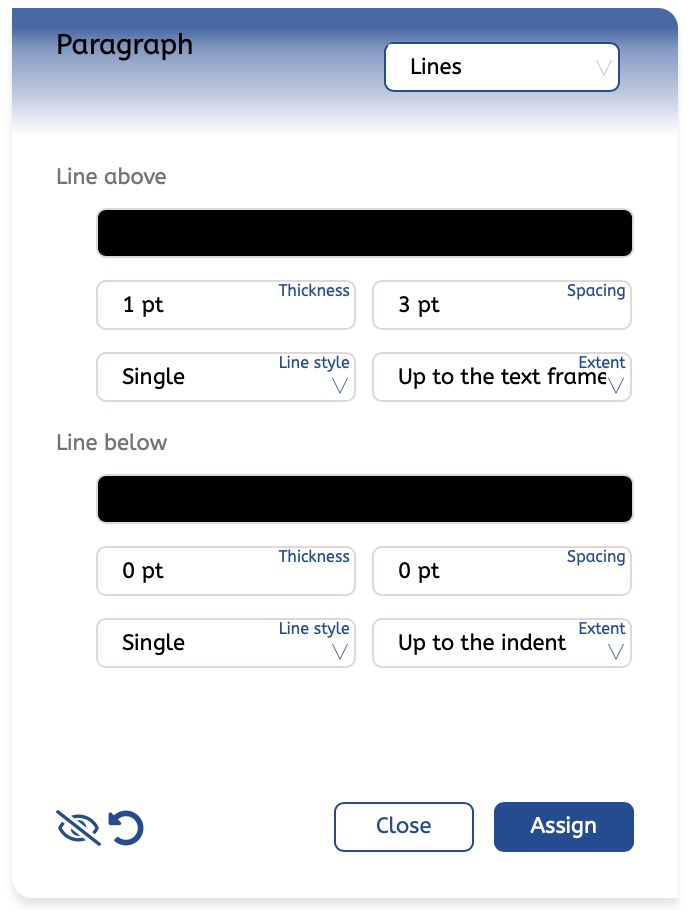

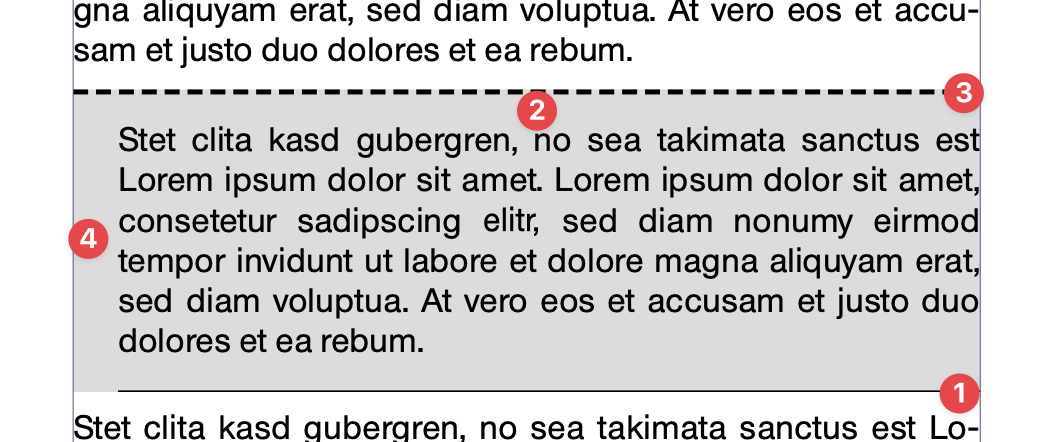

Line
Through this section in the paragraph format, you can determine whether a line should be placed before or after the paragraph.
The following settings can be made:
Line thickness (1)
Specify the line thickness. If the size is specified as 0, the function is not active.
Distance (2)
Determine the distance between the line and the text or text and line (as you see it) with the parameter.
Line type (3)
Select the line type. The available line types correspond to those available for frames.
Extension (4)
With this setting, you can specify whether the line at the paragraph considers the indents or grows to the edge of the text frame. It should be noted that the inner edge of a display is considered a text frame edge.

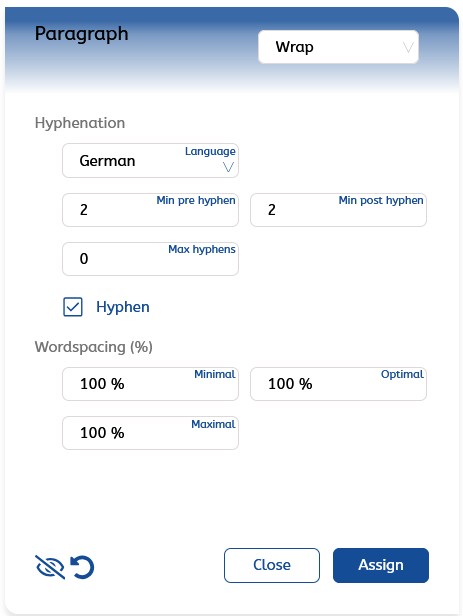

Exclusion
Specify how hyphenation should occur and how the spacing between words should be designed.
Hyphenation
Language:
Here you can set the hyphenation language. If "Neutral" is selected, no hyphenation will be performed.
The language specified here is also used for spell checking if a spell-checking program has been installed on the Stylo server.
Min. Prefix:
Specifies the minimum length of the prefix from which hyphenation is allowed. Example: With a minimum prefix length of 2, "er-zeu-gen" can be hyphenated; with a setting of 3, the word may only be hyphenated as "erzeu-gen".
Min. Suffix:
Specifies the minimum length of the suffix. Example: With a minimum suffix length of 2, "är-ger-te" can be hyphenated; with a setting of 3, the word may only be hyphenated as "är-gerte".
Max. Hyphenations:
This setting limits the number of consecutive hyphenations. If the maximum number is reached, hyphenation will no longer occur at the end of the line in the following line.
Hyphenate:
Hyphenation will only occur at the end of the line if hyphenation is turned on.
Word spacing
In the paragraph format, the minimum, optimal, and maximum wedge value can be specified. These are percentage indications that relate to the normal word spacing. In the administration, the values can be set that should be used for new documents.
The following rules apply when determining the word spacing
The text is excluded with the minimum wedge value. If a word overflows the line, it is checked whether the optimal wedge value is not exceeded without the overflowed word. In this case, no hyphenation occurs, and the overflowed word is carried over to the next line. In centered lines without line overflow, the wedge value results from the optimal value.
The maximum wedge value is evaluated when checking the maximum number of consecutive hyphenations. If the maximum number of hyphenations is exceeded, hyphenation will only not occur if the resulting word spacing in the line does not exceed the maximum wedge value.

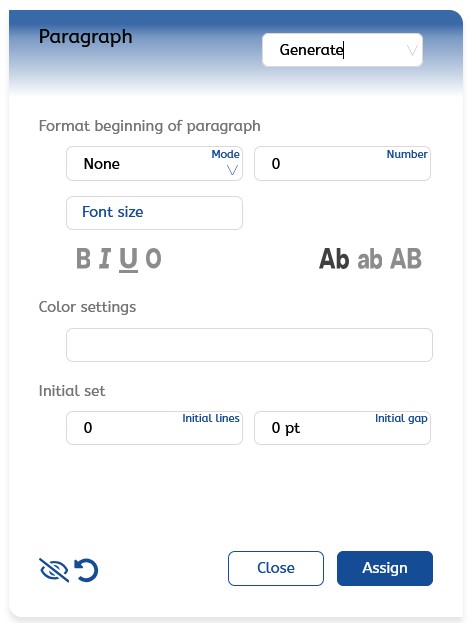

Generate
With this function, you can define the design of the text at the beginning of a paragraph.
Marking at the beginning of the paragraph
Mode: Here you can specify for which area the settings should apply. The following settings are available:
- None: There is no set character format at the beginning of the paragraph.
- Number of words: Number of words, separated by word spaces, that should appear in the special marking.
- Number of characters: Number of characters that should appear in the special marking.
- Character: Up to this character (inclusive), the selected marking is applied.
Number/Separator: Depending on whether the number of characters and words or a specific character should serve as a separator, specify a number or the separator here. If it is a separator, you can only specify one character.
Design: The design is done via these buttons.
| Symbol | Meaning |
|---|---|
| B | Bold |
| I | Italic |
| U | Underline |
| O | Outline |
| Ab | Case as entered |
| ab | Lowercase |
| AB | Uppercase |
Active design is displayed in black, inactive in gray.

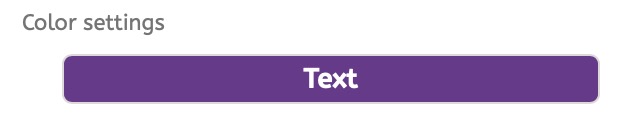

Color settings
When you press the button, a separate dialog opens. In this dialog, you can set the color settings for the foreground and background color. For the setting to take effect, you must specify via the mode for how many characters/words or up to which character the function should apply.
Initial sentence
To activate the initial sentence, you must specify via the mode for how many characters/words or up to which character the function should apply.
Initial lines: Specifies on which line (baseline) the initial should be placed.
Initial spacing: Defines the space between the initial and the adjacent text.
Please note: In earlier versions, vertical alignment was additionally activated. Old documents with this setting will be automatically corrected. The initial sentence will be automatically activated if vertical alignment was active and it was specified which area it should apply to.
