In this catalog, you can manage the color gradients for the document. The creation and management are accessed through the display menu in the toolbar under the item "Gradient Catalog."

The selection is made through the catalog, but is also available in the color tab. Color gradients can only be applied to graphic objects – they do not affect text and images. A color gradient can be removed by selecting "No Gradient" or choosing a different color.

Overview

This short video shows you how to create a color gradient:

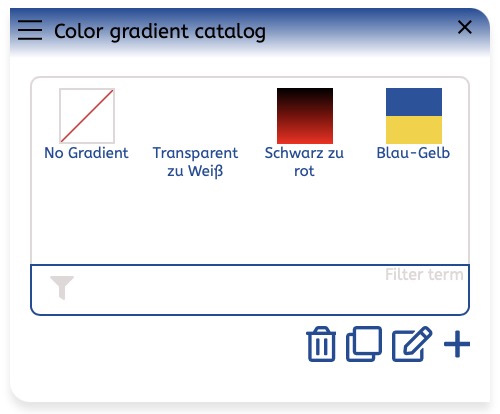

The Catalog

Assignment from the catalog is done by double-clicking. If you want to edit an entry, click on the entry and select one of the following functions:

Symbol	Explanation
	Add a new entry
	Edit an existing entry
	Duplicate an entry
	Delete an entry from the catalog

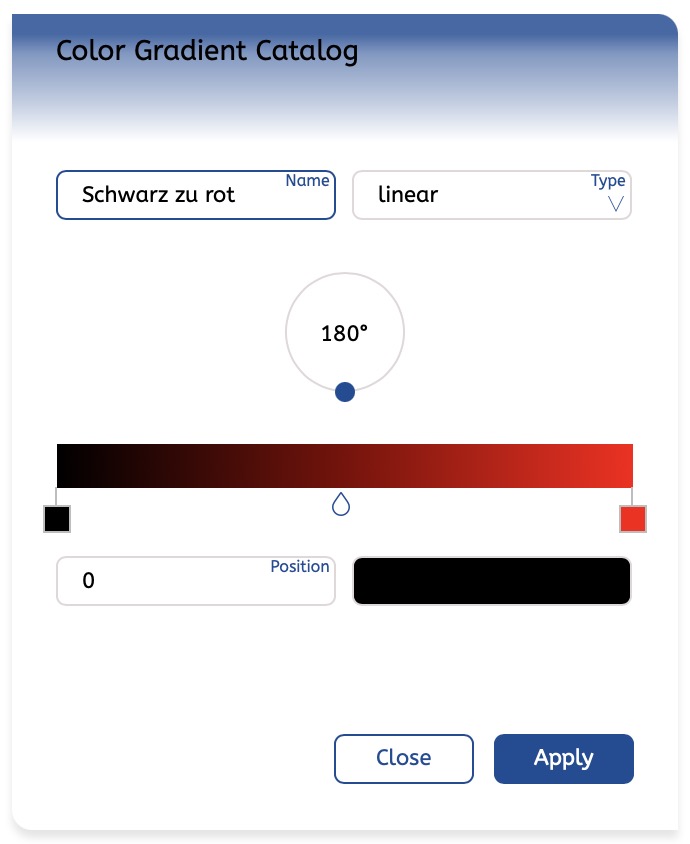

Adding/Editing a Color Gradient

Through this dialog, color gradients can be created and modified.

Name
Name of the color gradient

Type
Type of the color gradient – options are linear and radial.

Angle
Defines the direction of the gradient for linear gradients.

Slider Field
Here, the start and end color can be set. To set the color, click on one of the sliders and then determine the color or the start or end value.

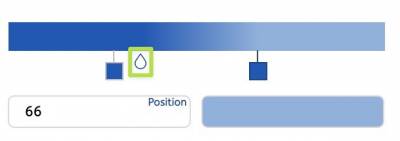

Using the slider in the middle (green bordered), the midpoint of the gradient can be determined. By default, it is set to 50%.

Position
For the selected control, the position can be determined in percentage.

Color Field
Opens the color dialog to select the color for the start or endpoint.

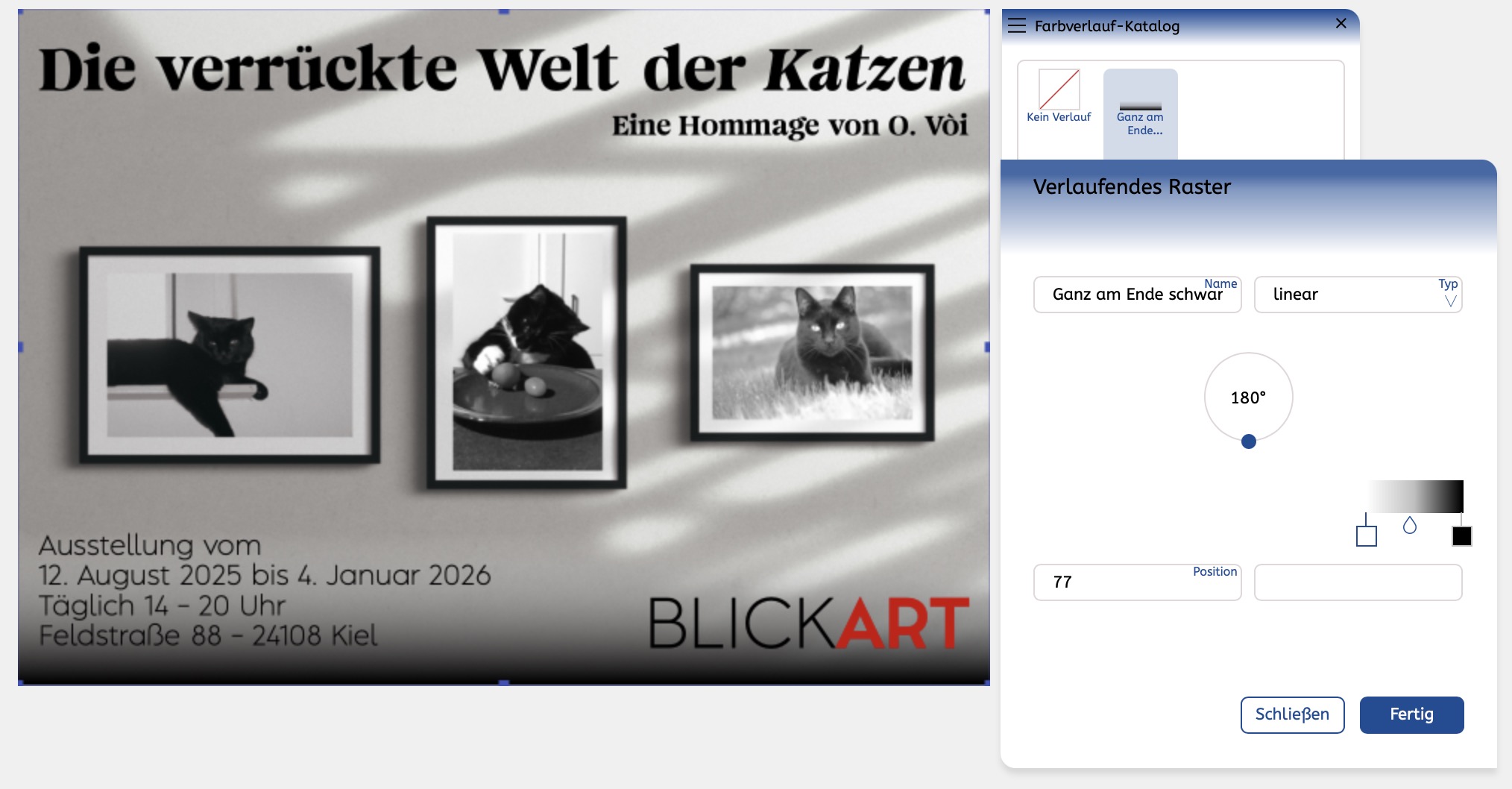

Furthermore, it is possible to create color gradients that go into transparency.

In the example, a layer was placed over the image that transitions from transparent white to black. The gradient starts after more than three-quarters of the height and has its focus at the midpoint of the actual gradient.
