Undo/Redo
In Stylo, all actions performed are stored in a cache, allowing any actions to be undone and redone. The maximum number of stored actions depends on the number of actions performed – normally, you can assume that you can undo more than twenty actions.
When objects are moved with the cursor keys or the mouse, or when their size is changed, not every single change is saved, but only the state before the first change. The same applies to text changes (inserting or deleting text).
| Keyboard Command | Function |
|---|---|
| Ctrl + z | Undo |
| Ctrl + y | Redo |
Copying, Cutting, and Pasting
Text and elements in Stylo can be copied, cut, and pasted. The function is activated using the following keyboard commands:
| Keyboard Command | Function |
|---|---|
| Ctrl + c | Copy |
| Ctrl + x | Cut |
| Ctrl + v | Paste |
| Shift + Ctrl + v | Paste object at original position (graphic) |
| Ctrl + d | Duplicate |
Text is always copied and pasted without formatting. Copying graphic and display elements between different Stylo instances (different browsers) is not possible. However, text will be retained.
When copying graphic objects, any display elements can be copied and pasted. The offset from the original object is 6 points. Unless you use the Shift key while pasting – both when using the keyboard command and when pasting via the Floating Toolbox.
You can find more keyboard commands here.
Manual Line Break
By pressing Shift + Return, a manual line break (“soft return”) can now be created, i.e., a line break can be forced within a paragraph. If you want to force a line to block, use the key combination Ctrl + Return.
In the administration of Stylo, the calling logic can be reversed.
Selecting Elements
With the Mouse: When you position the mouse over the frame of boxes, the “cross cursor” appears. A click with the left mouse button then selects the box. A double-click in the text activates the text cursor.
Drawing a Lasso with the Mouse: With the mouse, you can also draw a lasso to select objects. If there are background objects that could potentially be moved by the lasso (background images), you can simplify the lasso selection by holding down the Ctrl and Shift keys while dragging. In the administration of Stylo, it can be determined whether the lasso should encompass all objects for selection or only touch them.
With the Keyboard: Graphic objects can be selected using the control key. By holding down the Ctrl key, you can add more objects to the selection.
Navigation with the Keyboard
With the arrow keys on the keyboard, you can jump from one text frame up or down to the next adjacent text frame above or below.
If the insertion point is in the last line of a text frame (or text flow), you can jump to the next (lower) text frame with the “Down Arrow” key. If the insertion point is positioned in the first line of a text frame, you can switch to the previous (upper) text frame with the “Up Arrow” key.
If there is a link in the current text frame via vertical alignment, the other text blocks of the vertical alignment group are considered when determining the next or previous text frame; otherwise, the determination is based on coordinates.
Aligning Objects to a Fixed Grid
In Stylo, when moving and resizing using the mouse, a snap grid can be used. There are two different types of snap grids available.
This is broadly a (configurable) column and row grid. The horizontal grid is defined in the configuration (administration interface) by the position and type of the individual vertical grid lines. The type (Left, Right, All) of the grid line determines whether a vertical line acts as a grid line only when (horizontally) moving an object to the left, only when moving to the right, or whether the line should generally act as a grid line.
The vertical grid is determined in the configuration by the default font size and the default line spacing. When (vertically) moving an object upwards, it snaps directly to a line. When (vertically) moving an object downwards, it snaps to a line position minus one standard line spacing. This way, text frames can be aligned precisely to the lines.
Additionally, in the configuration, the size of the area in which snapping should occur, as well as the colors for the grid lines, can be defined.
The column grid can be activated through the “Grid” function in the display menu.
The Automatic Snap Grid
In contrast to the fixed snap grid, the automatic snap grid generates guide lines from the surroundings of the selected object. This allows you to easily align the currently selected object with other objects. In addition to the lines of the objects, automatic snap grid lines are placed at the document boundary as well as at the distances (margins) defined in the object properties of the display.
If the option "Snap to Distances and Sizes" is added, you will also receive hints on the distances and sizes of objects while dragging.
The automatic snap grid is activated via the display menu or quick access. The option "Snap to Distances and Sizes" is only active when the automatic snap grid has been activated.
Aligning Objects to a Guide Line

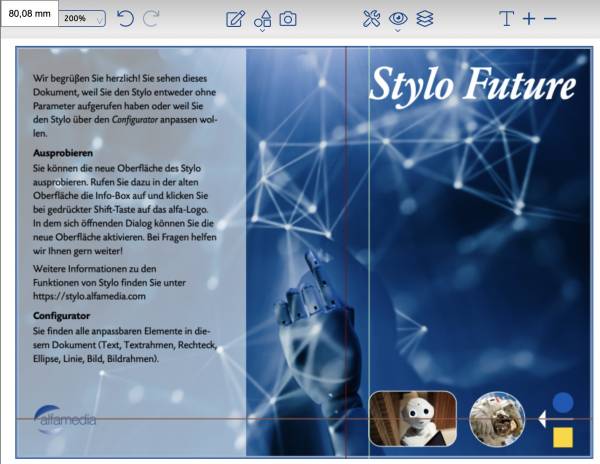

To create guide lines, you must first activate the ruler in the toolbar. The visibility of the guide lines can be toggled on or off via the display menu.
From the ruler, horizontal and vertical guide lines can then be drawn. Clicking the white space in the upper left corner generates both horizontal and vertical guide lines simultaneously.
At that point, the current position is also displayed. The unit of measurement is determined through the administration of Stylo. You can also specify what color the guide line will be drawn in.
The guide line is magnetic, and objects will snap to it when you move the objects in the direction of the line.
If you want to delete a guide line, you can either select and delete it or drag it back into the ruler area.
The properties of the guide line can be accessed through the context menu.
Position: Here you can set the x or y axis of the line.
Magnetic: Guide lines are always magnetic by default. This can be turned off here.
Color: In the administration of Stylo, the default color for guide lines is set. Here you can change it for individual guide lines.
In the Stylo administration, you can specify what color a guide line should have by default and in which unit of measurement the position is displayed during movement.
